You can minimize the loss of life, risk of injury and damage to property with our complete range of fire alarms.
At Goldmate Security, we have years of experience in working with businesses throughout Nigeria and other West African countries, helping them to protect their premises from such threat or fire mishaps – from the state-of-the-art smoke detectors to all types/class of fire extinguishers etc.
Fire Alarms may not be able to stop a fire from starting, but they have been proven to greatly reduce the risk of injury and loss of life, while you can also limit the damage to your property.
We also have wireless battery-operated smoke detectors with over 5(five) years battery lifespan at an affordable price to protect your home and family.
Fire Alarm equipment and accessories from ContextPlus, Gent by Honeywell with robust aftersales support
Conventional Fire System

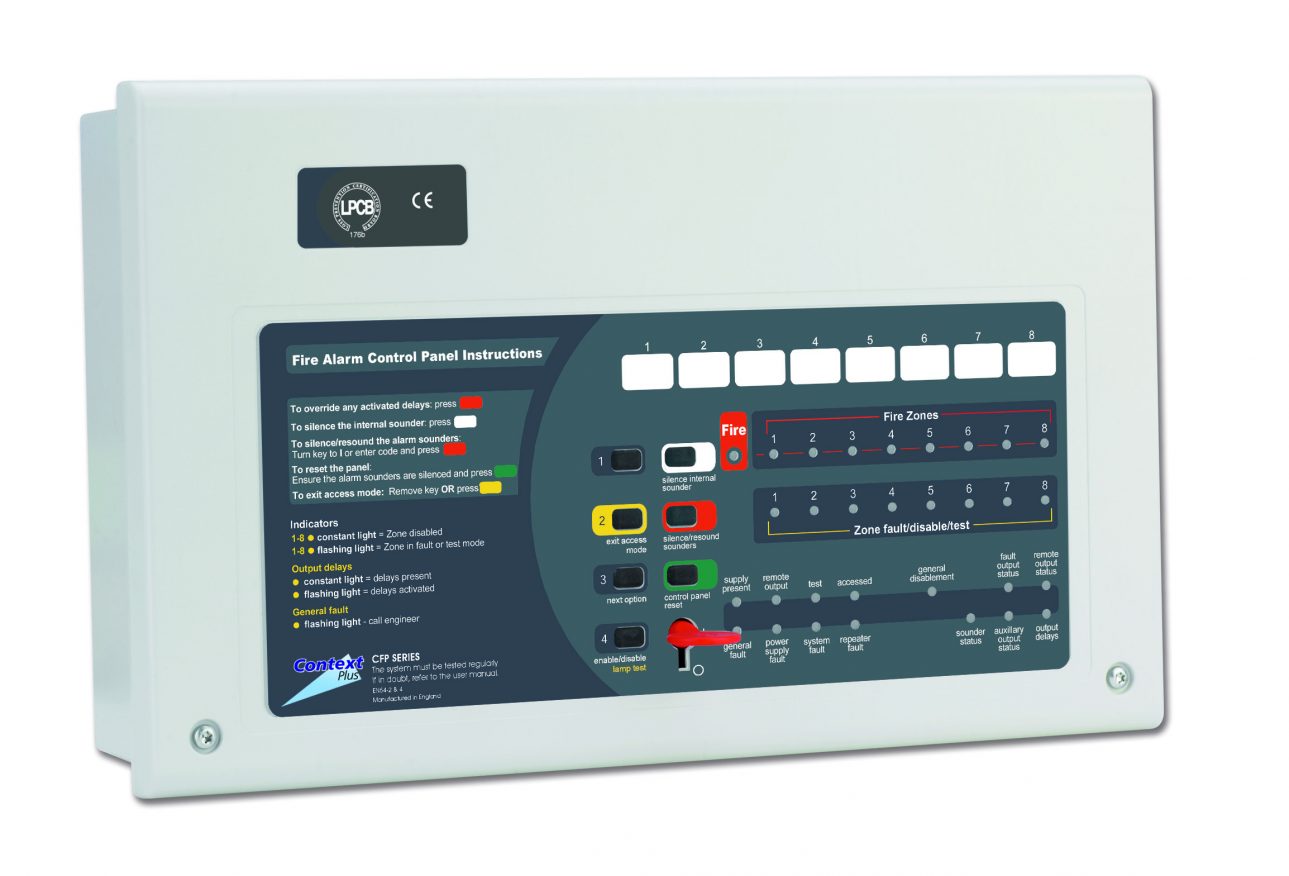

CFP Conventional Panel 2 Zone CFP702-4/CON
LPCB certified to EN54-2/4, Context plus’s CFP 2 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price.

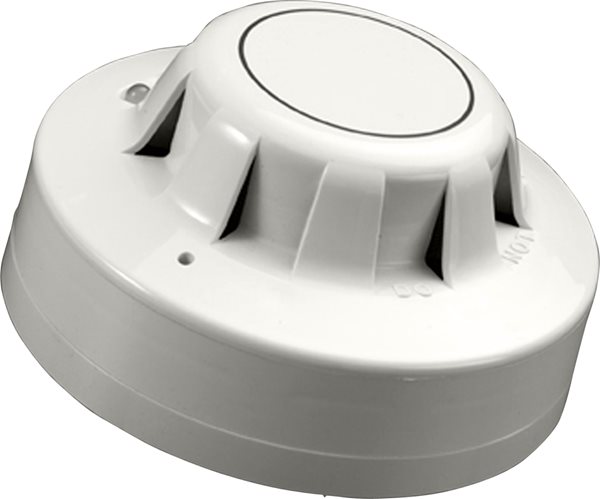

Series 65 Optical Smoke Detector
The Series 65 Optical Smoke Detector has a moulded self-extinguishing white polycarbonate case with wind resistant smoke inlets. Nickel plated stainless steel wiper contacts connect the detector to the base. Inside the case a printed circuit board has the optical system mounted on one side and the signal processing electronics on the other. The sensing chamber is a black moulding configured as a labyrinth which prevents penetration of ambient light. The labyrinth has a fine gauze insect-resistant cover.

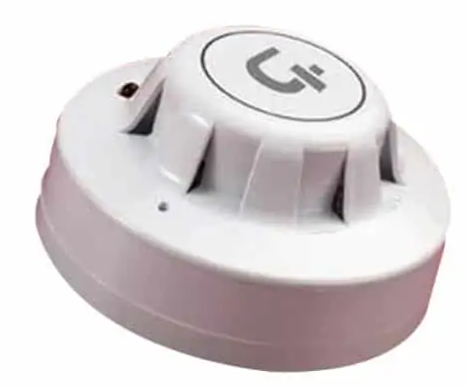

Series 65A Ionisation smoke detector (UL Listed with Flashing LED),55000-226IMC
The sensing part of the detector consists of two chambers – an open, outer chamber and a semi-sealed reference chamber within. Mounted in the reference chamber is a low activity radioactive foil of Americium 241 which enables current to flow between the inner and outer chambers when the detector is powered up.
As smoke enters the detector, it causes a reduction of the current flow in the outer chamber and hence an increase in voltage measured at the junction between the two chambers.
The voltage increase is monitored by the electronic circuitry which triggers the detector into the alarm state at a preset threshold. An externally visible red LED lights up when the detector changes to alarm state.

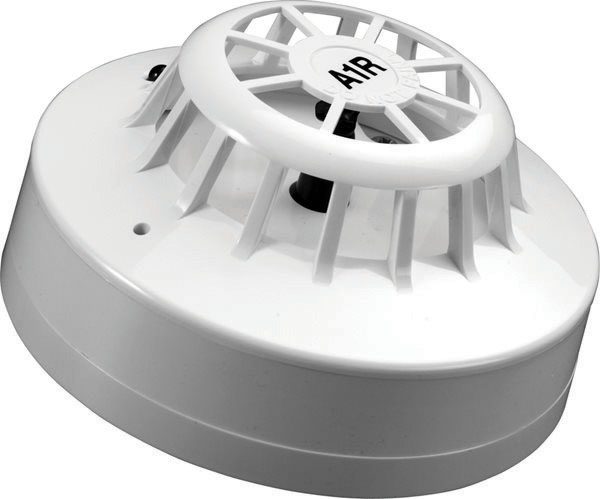

Series 65E Heat Detectors With Flashing LED, 55000-121IMC
The Series 65 Heat Detector monitors temperature by using a dual thermistor network which provides a voltage output proportional to the external air temperature. There are 12 heat detectors in the Series 65 range designed to suit a wide variety of operating conditions.
The detector has a moulded self-extinguishing white polycarbonate case. Nickel plated stainless steel wiper contacts connect the detector to the base. Inside the case a printed circuit board holds the signal processing electronics.A pair of matched negative temperature co-efficient thermistors are mounted on the PCB in such a way that one thermistor is exposed to give good thermal contact with the surrounding air while the other thermistor is thermally insulated.
Series S65A base (UL Listed), 45681-200IMC
The bases have been designed to enable detectors to be plugged in without any need for force – particularly useful when fitting to suspended ceilings. All Context Plus bases are lockable.
The standard base is identical to the Series 60 base, so uses the same part number, 45681-200 IMC. It contains no electronic parts which could be damaged during installation.

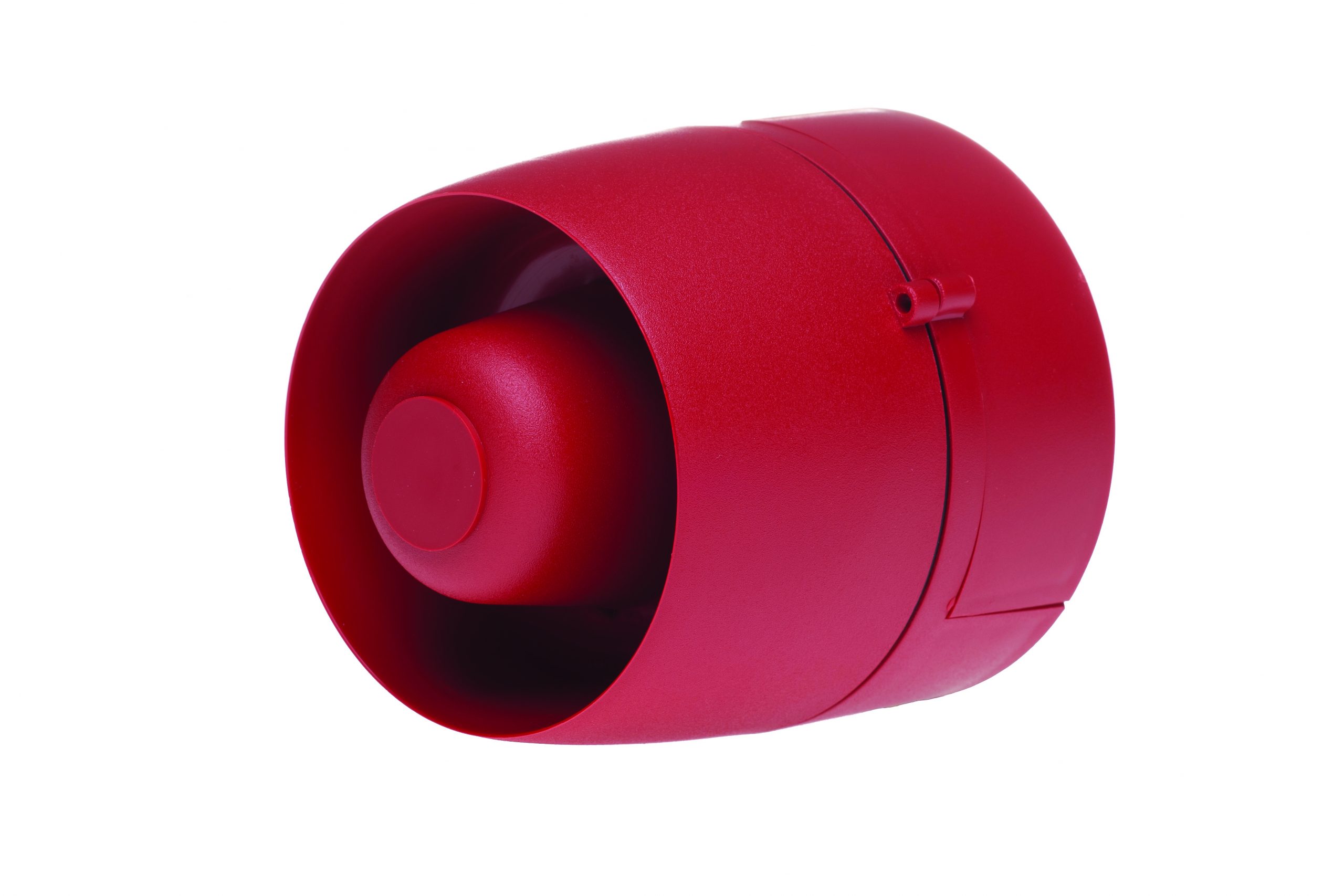

Conventional Sounder 32 Tone CP550DB
Operating frequency (Hz): 440-2900Hz Temperature range: –20(°C) to +70(°C) Protection rating IP21C (shallow)
IP33C, IP65 (deep base) Weight 0.22kg (shallow base) 0.25kg (deep base)
FirePlus DB sounder, red body deep base (IP65), LPCB approved

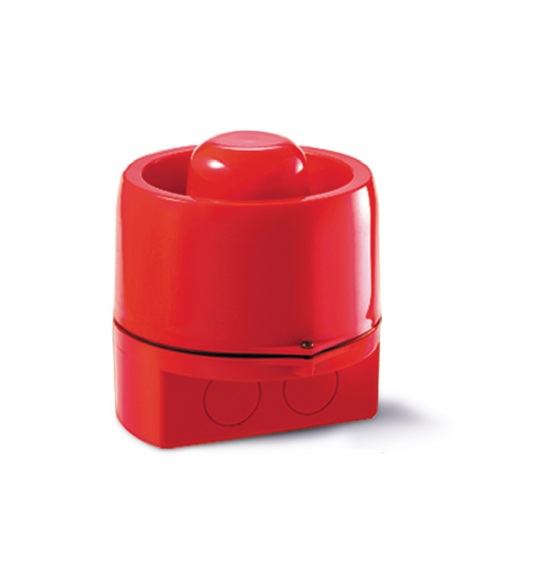

Conventional Sounder 4 Tone CP400SR
Context Plus Electronic Sounder CP400SR and Sounder/Beacon CP450SER’s compact design is acoustically very efficient, capable of generating high sound output (103 dBA) at low current levels (13mA at 24 VDC). They also have a wide angle uniform sound distribution providing good audibility in all directions, thus making them ideal for fire, security and hazard warning.
CP400SR operates over a wide input voltage range of 8 to 28V DC while CP450SER in the range of 20 to 28V DC. Both models are optimised for use at 12V and 24V systems. These conventional wall mount devices are available in 4 tone versions with locally controllable output levels allowing the sound intensity to be adjusted to suit the application. If required, the use of a third wire enables a second stage alarm to be switched to override the selected tone. These versatile features allow both models to work seamlessly with most detection systems incorporating central control equipment.

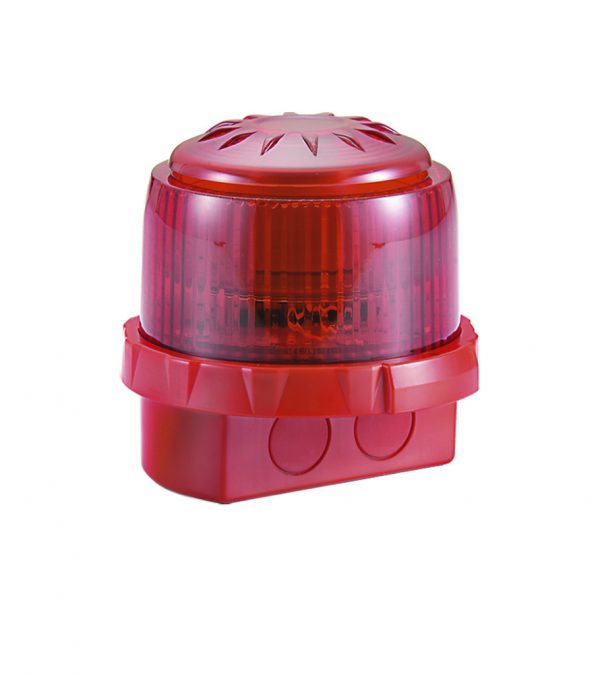

Conventional Combined Sounder Beacon 4 Tone CP450SER
Context Plus Electronic Sounder/Beacon CP450SER’s compact design is acoustically very efficient, capable of generating high sound output (103 dBA) at low current levels (13mA at 24 VDC). It also has a wide-angle uniform sound distribution providing good audibility in all directions, thus making it ideal for fire, security, and hazard warning.
CP450SER operates over a wide input voltage range of 20 to 28V DC. It is optimized for use in 12V and 24V systems. This conventional wall mount device is available in four (4) tone versions with locally controllable output levels allowing the sound intensity to be adjusted to suit the application. If required, the use of a third wire enables a second stage alarm to be switched to override the selected tone.
EP203 3 Zone Automatic Extinguisher Panel

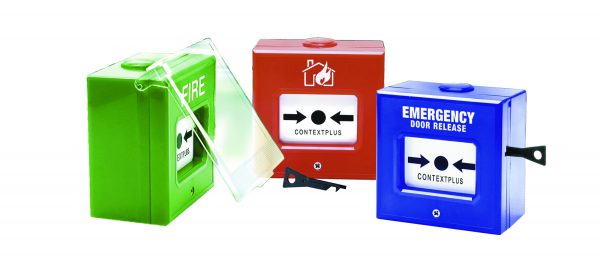

Context Plus Resettable Manual Call Point CP500CPR’s simple ‘RESET’ mechanism consists of tough ABS plastic operating elements that simulates break glass activation. It is instantly reusable without environmental hazard caused by fragments of broken glass–making it very suitable for used in food processing plants and places that are prone to false activations such as schools, shopping malls and other high traffic areas. CP500CPR is professionally designed for both open and close circuit system. Alternate terminals are provided for open and close circuits. When wired for open circuit operation, the circuit closes instantly when activated.
Context Plus Resettable Manual Call Point CP500CPR also meets the requirements of BS5839 Part 2 and EN54 Part 1
Automatic Extinguisher System

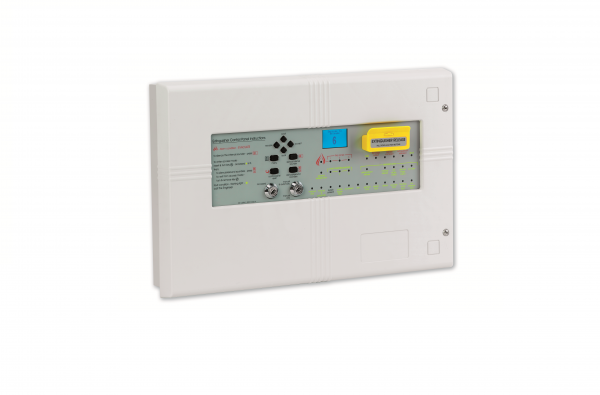

EP203 3 Zone Automatic Extinguisher Panel
LPCB certified to EN 12094-1 (the European standard for Fixed Firefighting Systems – Components for Gas Extinguishing Systems) and EN54-2/4, the EP203 three zone automatic extinguisher panel epitomises quality, durability and reliability.
Specifically designed for use in areas housing expensive, dangerous or irreplaceable items of equipment, it features an intuitive 128 x 64 pixel display that gives clear and concise feedback to the user, installer and commissioning engineer. It has six monitored inputs (including hold & abort), a time stamped log, adjustable flood times and volt-free changeover relays for fire, local fire, 1st stage active, 2nd stage active, extractor fan and fault.
All of the panel’s electronics – apart from its powerful 3A EN54-4 switch mode PSU – are mounted on a detachable metal bridge plate for ease of installation. A wide range of ancillaries are also available including remote status units, hold-off & abort buttons, line terminators and relay boards.

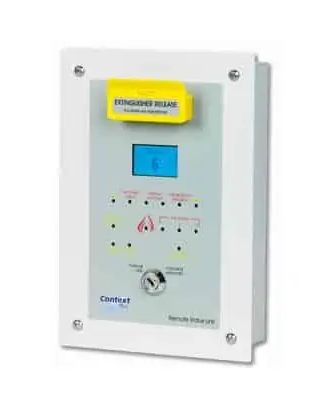

EP210F - Flush Mounting Remote Status Unit
Remote status unit, flush mounting, fully functional c/w Status LCD, manual release & mode (auto/manual) switches. Max. 8 x EP201F or EP210S per EP203
- Designed to connect to the RS485 terminals on an EP203 Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64-pixel LCD status display.
- Also includes a pull-down manual release button, a mode (auto/manual) key switch and a wide range of system status indicators.
- Three monitored input connections (Hold, Abort and Mode).
- Max. 8 remote status units per EP203 panel.
- Flush remote status units (EP210F) and weatherproof enclosures (BF359/1) are also available.

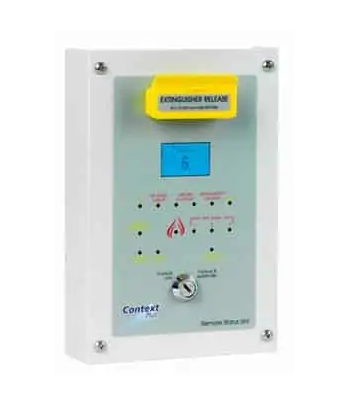

EP210S - Surface Mounting Remote Status Unit
Remote status unit, surface mounting, fully functional c/w Status LCD, manual release & mode (auto/manual) switches. Max. 8 x EP201F or EP210S per EP203
- Designed to connect to the RS485 terminals on an EP203 Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64-pixel LCD status display.
- Also includes a pull-down manual release button, a mode (auto/manual) key switch and a wide range of system status indicators.
- Three monitored input connections (Hold, Abort and Mode).
- Max. 8 remote status units per EP203 panel.
- Surface remote status units (EP210S) and weatherproof enclosures (BF359/1) are also available.

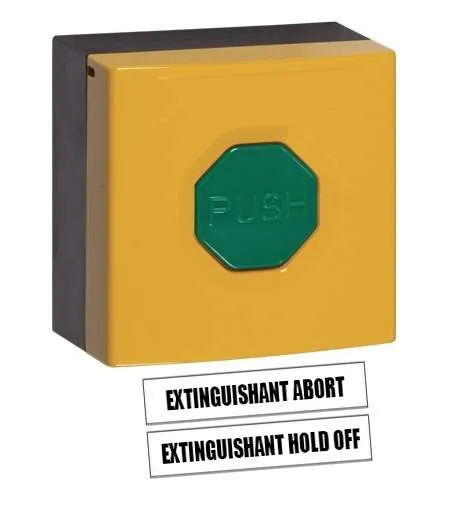

EP215 - Extinguishant Hold Off/Abort Button

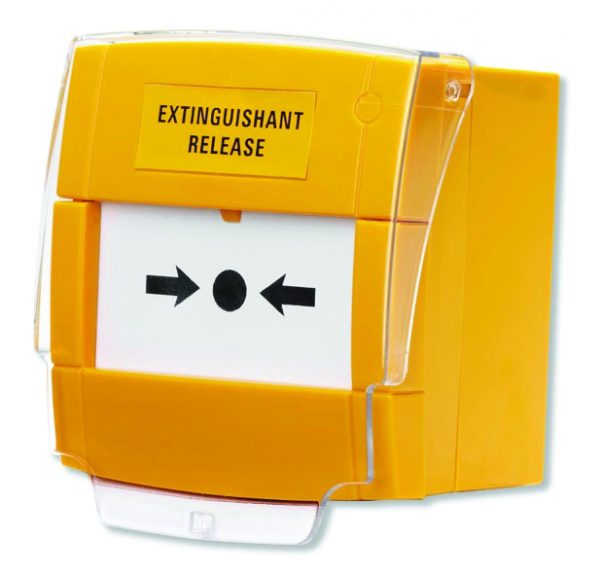

Yellow Extinguishant Release Call Point
Yellow Extinguishant Abort button, surface mounting, with hinged cover & “EXTINGUISHANT ABORT” text.
Yellow Extinguishant Release surface mounting Call Point, Resettable, with hinged cover & “Extinguishant Release” text.
Addressible Fire System

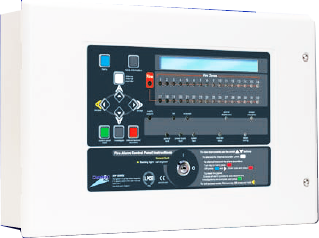

XFP Networkable two loop 32 zone panel
XFP Networkable two loop 32 zone panel , code/keyswitch entry, c/w 3A psu, metal enclosure – LPCB APPROVED
XFP two loop 32 zone addressable fire alarm panel offers high performance at a very competitive price.
LPCB certified to EN54 parts 2 & 4, it is supplied in durable metal enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Apollo’s XP95/Discovery protocol.
Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe’s best-selling addressable fire panels.

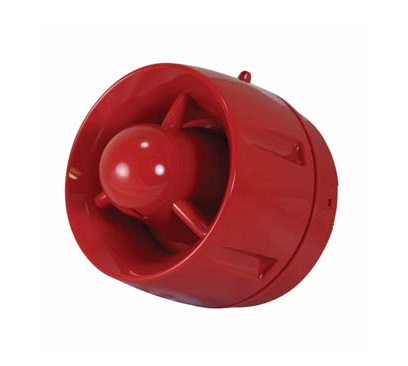

CON430A/CX/SR - Loop Powered sounder with shallow base
24V red Addressable loop powered sounder with shallow base – (formerly BF330CTSR)

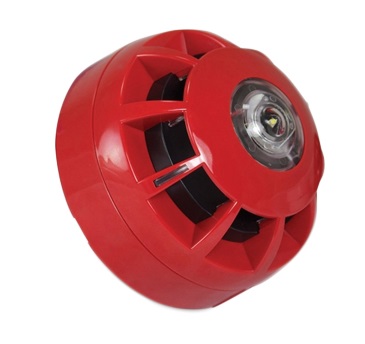

CON458A/CX/SR - Loop Powered Compact beacon
24V red Vantage loop powered Compact beacon c/w shallow base – INTERTEK Approved. (Formerly BF340CTSR)
COMPACT BEACON ONLY, CON458A/CX/SR
• Third-party certified to 17 (Isolator) & 23 (VAD) • C-3-8 light distribution (on ceiling)
• W-3-2.1 light distribution (on wall) • 10mA alarm current @24VDC (VAD lit)
• 550uA quiescent current • 102mm diameter, 63mm deep. IP21C (Type A) rated

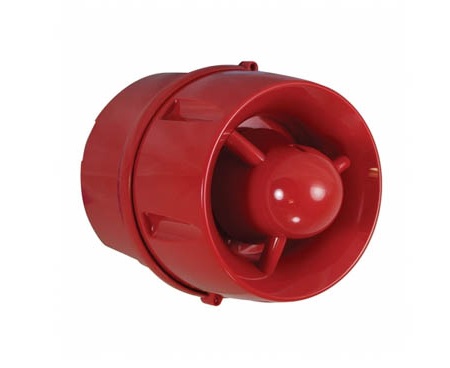

CON430A/CX/DR/65 - Loop Powered sounder with deep base IP65
24V red Addressable loop powered sounder with deep base IP65 (formerly BF330CTDR)
CON430A/CX/DR/65
• Hi-Output 103dB(A) Wall Sounder, IP65, CON430A/CX/DR/65 • 103dB(A) sound output @ 1m
• Weather resistant to IP65 • Onboard short-circuit loop isolator. • 5mA alarm current @24VDC
• 7 selectable volume levels • Up to 15 selectable tone pairs • 550uA quiescent current
• Group addressing facility allows multiple devices to operate simultaneously • 114mm diameter, 132mm deep

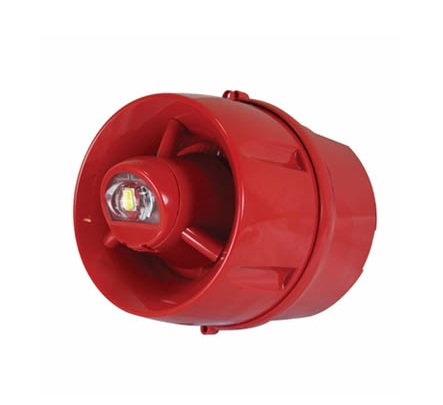

Hi- Output Wall Beacon c/w 103dB(A) Sounder IP65
24V red Addressable loop powered sounder/beacon with deep base IP65 – (formerly BF333CTDR)
• Powerful 103dB(A) Sound Output at 1m • W-2.4-8.2 light distribution
• Weather resistant to IP65 • Onboard short-circuit loop isolator
• 550µA quiescent current. • 14mA alarm current @24V DC • 114mm diameter, 132mm deep
• Group addressing facility allows multiple devices to be operated simultaneously.

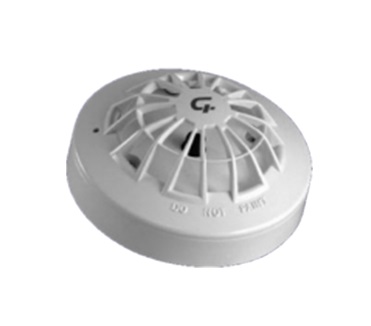

55000-665IMC - DIL SWITCH Optical Smoke Detector
The Context Plus Intelligent Addressable Optical Smoke detector 55000-665IMC uses an internal pulsing infrared LED and a photo-diode at an obtuse angle. In clear air conditions the photo-diode in the detector receives no light from the LED and produces a corresponding analogue signal. The signal increases when smoke enters the chamber and light is scattered onto the photo-diode. The optical smoke detector has an indicator LED which emits red light when the detector is in alarm.

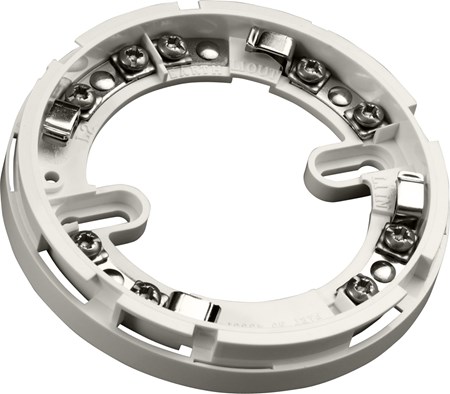

45681-200IMC - Series S65A base (UL Listed)
The bases have been designed to enable detectors to be plugged in without any need for force – particularly useful when fitting to suspended ceilings. All Context Plus bases are lockable.
The standard base is identical to the Series 60 base, so uses the same part number, 45681-200 IMC. It contains no electronic parts which could be damaged during installation.
Ei Battery and Wireless Detectors

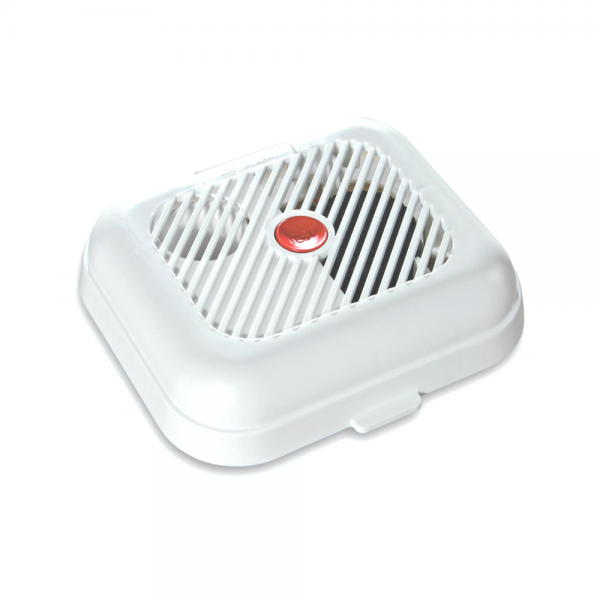

Ionisation Smoke Detector (Ei100B-CON)

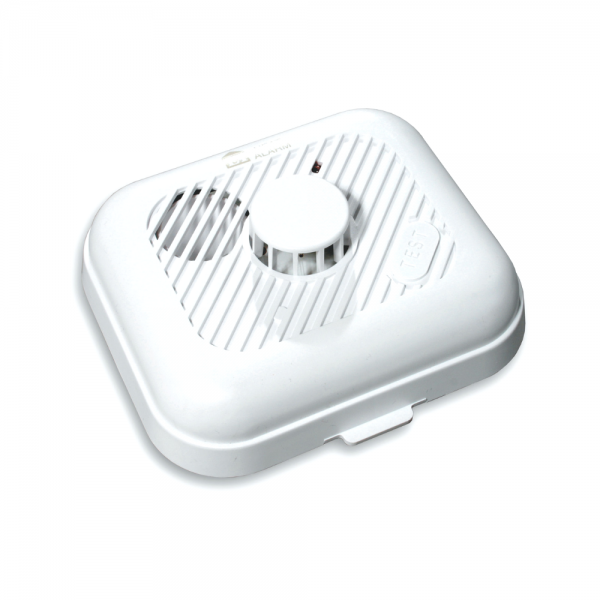

Heat Detector (Ei103C-CON)
Context Plus Battery operated ionisation smoke detector, BSI kitemarked, complete with 9V zinc carbon battery- Branded Context Plus.
Context Plus Battery operated heat detector, BSI kitemarked, complete with 9V alkaline battery and with facility to hardwire interconnect up to 12 units – Kitemarked to BS5446-1:2000
Conventional Fire System

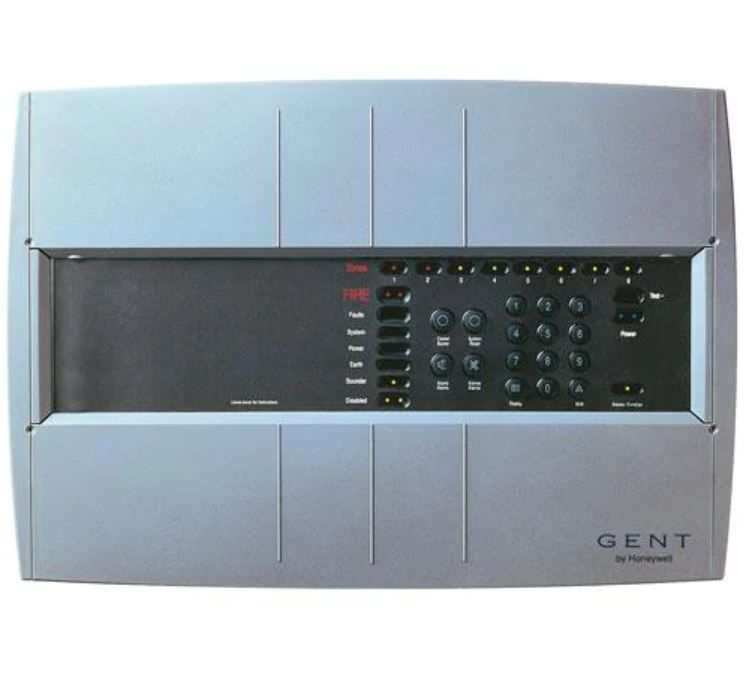

Xenex Panel
The Xenex range of conventional fire detection and alarm panels is a highly cost effective option for small building premises requiring coverage for up to eight zones. Certified to EN54 Parts 2 & 4, the Xenex panel contains integral power supply and battery standby for up to 72hrs.
With up to eight alarm sounder circuits, repeat panel output, remote evacuation control and one-man test and commissioning Xenex is a leader in conventional panel technology.

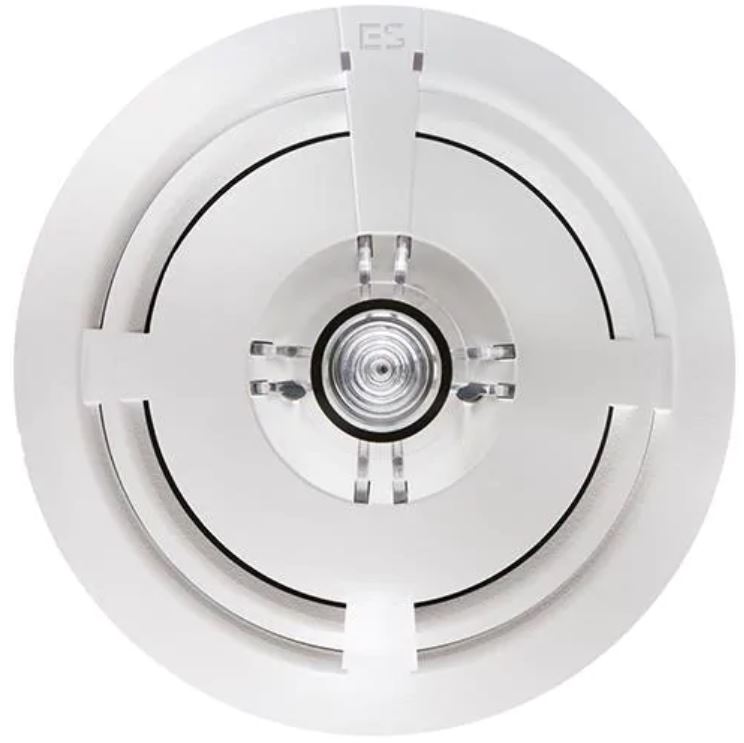

ES Detect Conventional Detectors
The ES Detect range are non-addressable detectors specifically designed for operation on conventional systems. The range includes a fixed heat detector, fixed heat for Class B, rate of rise detector and an optical smoke detector.

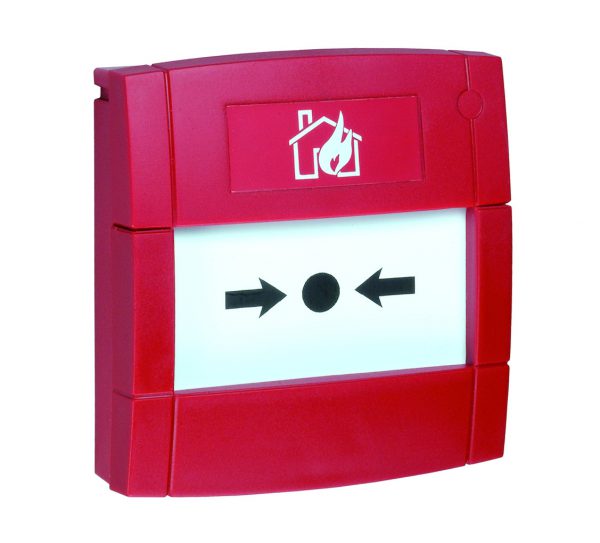

Manual Call Points
Manual call points for the Vigilon and Nano system are easy to install and may be mounted on standard installation back boxes or bespoke red back boxes for surface mounting.
Every manual call point is continuously monitored ensuring a trigger is responded to in less than three seconds system wide.
The range includes options for glass and resettable elements and lift-up protective covers. A keyswitch version is also available for areas where tampering or vandalism is expected.
An Environmentally Protected (EP) version with Ingress protection rating IP67 is also available, complete with resettable element, protective cover and backbox.

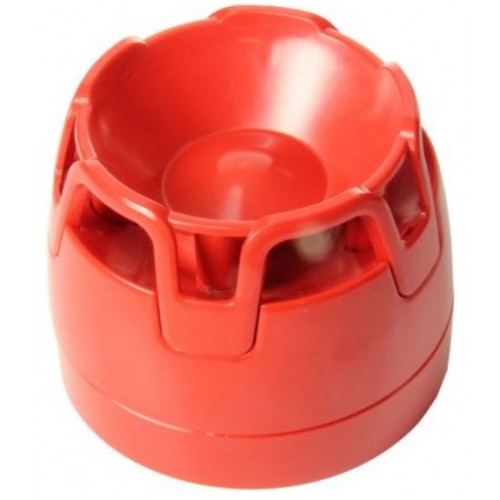

Sounders
Honeywell’s conventional sounder is a high-quality device designed to alert building occupants of an emergency. The product features a new folded horn design which provides outstanding sound output at low current draw.
With its modern design, global tone set and extensive installer-friendly features, the sounder is the logical choice for specifiers, installers and distributors.
Addressable Fire System

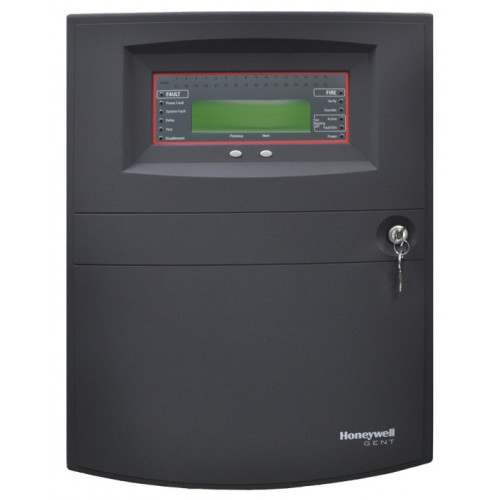

Vigilon 4 Loop panel
The Vigilon Plus range of control panels are available in 4 loop and 6 loop versions. The 4 loop Vigilon has a self contained power supply and battery standby for at least 24 hours and the 6 loop with external batteries will support a system for 72hrs in the event of a mains power failure.
Certified to EN54 parts 2 and 4 Vigilon may be supplied with or without an on-board printer and has a full Qwerty style keyboard allowing full control and management of the system from the panel if required.
Large multi-panel networks accommodating up to 200 devices on each loop and with multipanel networks Vigilon provides a versatile solution for protecting buildings of all sizes

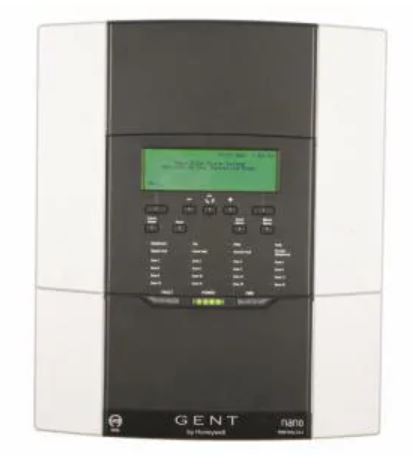

Nano panel
Nano is a single loop, analogue addressable control panel that can accommodate up to 127 devices.
The panel controls a wide range of loop powered devices along with the benefits of the powered Vigilon loop. The devices it controls include the latest S-Quad & S-Cubed range of sensors, sounders and sensor sounders. Certified to EN 54 parts 2 & 4 the standard panel is self-contained with batteries to maintain 24-hour standby.
Nano has been designed with an emphasis on ease of use in installation, commissioning and daily use and maintenance. The panel has an attractive aesthetic appearance that incorporates an intuitive user interface, and is suitable for any type of small building.
Compact Plus Control Panel
A one or two loop panel accommodating up to 200 devices per loop, with the capability of networking with other Compact Plus or Vigilon Plus Panels.
Multiple panel networks can be programmed seamlessly as one system, allowing for flexible design and total system management.

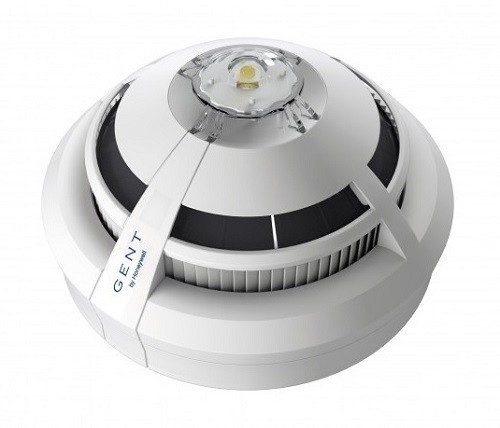

S-Quad Sensor and Sensor Sounder
S-Quad leads the industry in fire sensing technology. A complete range of devices sensors with a unique combination of sensing elements to provide quick, intelligent fire decisions.
The innovative S-Quad multi-sensor is capable of detecting the products of combustion such as heat, smoke and carbon monoxide. Smoke detection is enhanced using patented dual optical scatter technology. This allows it to be configured to filter specific risks such as steam and dust, resulting in significantly reduced false alarms.
S-Quad’s inherent flexibility means it can be programmed to suit specific site applications. Different sensitivity states are set to incorporate combinations of optical, dual optical, heat and CO sensing elements. States can be selected depending on the different conditions in a room or a time period when interference may be more likely.

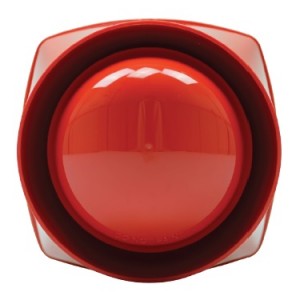

Gent S3 Sounder with Red Body - S3-S-R
Honeywell Gent’s low-current S-Cubed range incorporates a sounder, voice sounder and an EN54-23 certified visual alarm in one device. Advanced loop powered technology means that S-Cubed is the most efficient loop powered sounder in the industry where a whole loop of sounders could be powered without the need for additional power supplies.

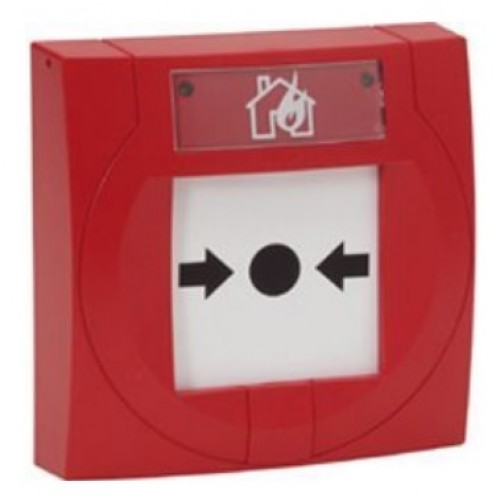

Manual Call Point
Call points from Honeywell Gent are easy and safe to operate, with no hammer required. Fully compliant with EN 54-11, each point is manufactured from ABS and both have a break glass and resettable element. For areas susceptible to inadvertent operation – such as sports halls – a stronger, clear polycarbonate cover version is available.
Gent S3 Red Body Sounder Standard Power with Red VAD - S3-S-VAD-LPR-R
S-Cubed offers a comprehensive range of loop powered alarm sounders with integrated voice and EN54-23 certified visual alarms. Combined with flexible configuration from the Gent by Honeywell fire control panels, this loop powered device can give a differentiated combination of audible and visual alarms for alert and general evacuation.
Very low power consumption means that the Vigilon system offers more high performance sounders and VADs on the loop than any other manufacturer
